VFCD1505 (Z-Foil)
Vishay Foil Resistors
TABLE 1 - RESISTANCE VALUES/RATIO AND TCR CHARACTERISTICS
POPULAR
VALUES
VCODES
ABSOLUTE TCR
(- 55 °C TO + 125 °C, + 25 °C REF.)
TYPICAL MAXIMUM
TCR TRACKING
TYPICAL MAXIMUM
TOLERANCE
MATCHING
10K/10K
V0001
5K/5K
1K/1K
V0002
V0004
± 0.2 ppm/°C
± 1 ppm/°C
0.1 ppm/°C
0.5 ppm/°C
0.01 %
2K/2K
V0059
5K/10K
2.5K/10K
1K/9K
1K/10K
V0005
V0060
V0056
V0064
± 0.2 ppm/°C
± 0.2 ppm/°C
± 1 ppm/°C
± 1 ppm/°C
0.4 ppm/°C
0.4 ppm/°C
1.0 ppm/°C
1.0 ppm/°C
0.01 %
0.02 %
Note
? Additional ratios are available. For the relevant VCODES for ordering, please contact application engineering using the footer below
TABLE 2 - TYPICAL PERFORMANCE SPECIFICATIONS
TEST
Thermal shock
Low temperature operation
Short time overload
High temperature exposure
Resistance to soldering heat
Moisture resistance
Load life (ratio stability)
MIL-PRF-55342H CHARACTERISTIC E ? R LIMITS (1)
0.10 %
0.10 %
0.10 %
0.10 %
0.20 %
0.20 %
-
VFCD1505 ? RATIO
0.005 % (50 ppm)
0.005 % (50 ppm)
0.005 % (50 ppm)
0.01 % (100 ppm)
0.01 % (100 ppm)
0.005 % (50 ppm)
0.005 % (50 ppm)
Maximum working voltage for each element
Weight
Packaging
22 V
10 mg
Waffle pack standard, tape and reel available
Note
(1) ? R’s plus additional 0.01 ? for measurement error

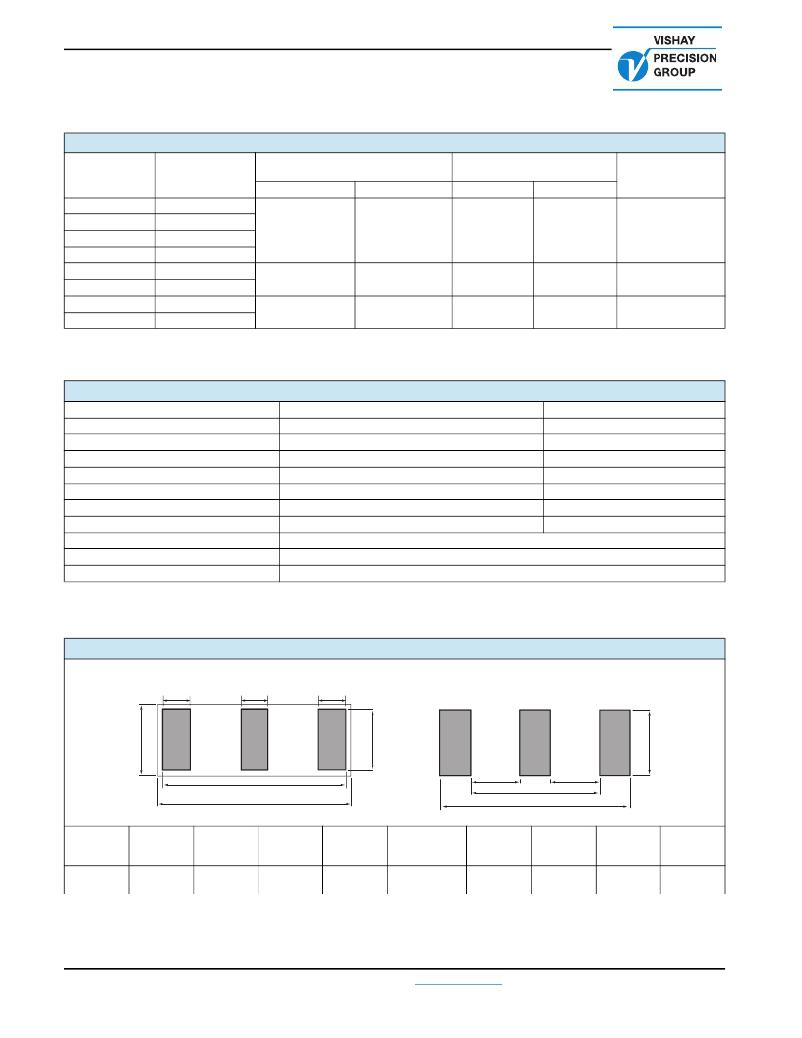

FIGURE 3 - MODEL VFCD1505 DIMENSIONS AND LAND PATTERN in inches (millimeters)
CHIP (BOTTOM VIEW)
RECOMMENDED LAND PATTERN
D
D
D
W
W1
X
L1
L
S
G
Z
S
L
± 0.005
(0.13)
0.150
(3.81)
W
± 0.005
(0.13)
0.050
(1.27)
D
± 0.003
(0.08)
0.015
(0.38)
L1
± 0.003
(0.08)
0.144
(3.66)
W1
± 0.005
(0.13)
0.043
(1.09)
THICKNESS
MAXIMUM
0.025
(0.64)
Z
± 0.003
(0.08)
0.147
(3.73)
G
± 0.003
(0.08)
0.111
(2.82)
S
± 0.003
(0.08)
0.046
(1.17)
X
± 0.003
(0.08)
0.046
(1.17)
Notes
? Avoid the use of cleaning agents which could attack epoxy resins, which form part of the resistor construction
? Vacuum pick up is recommended for handling
? Soldering iron is not applicable
www.foilresistors.com
2
For any questions, contact: foil@vishaypg.com
Document Number: 63109
Revision: 25-Mar-10
